DMC KALIP
DK10

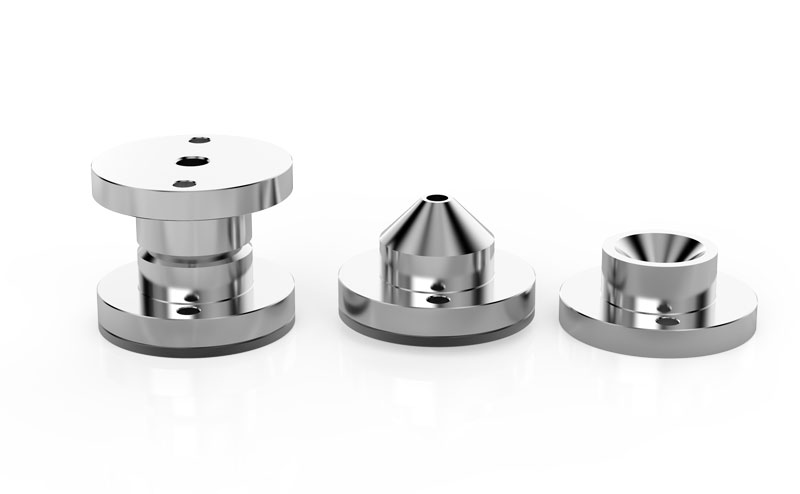

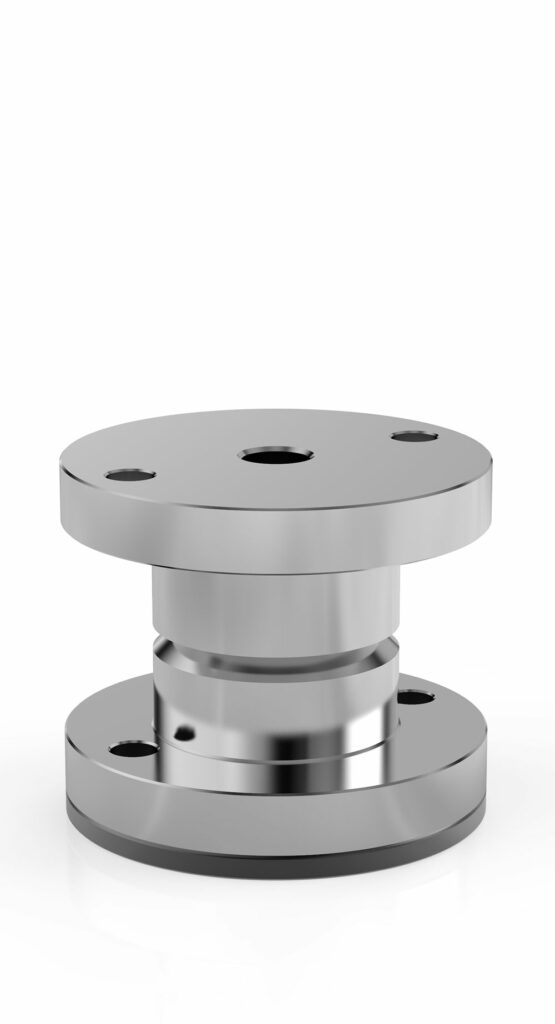

Saç Kalıpları Merkezleme Elemanları
| Material | 16MnCr5 (1.7131) |
| Isıl İşlem | 60 – 64 Hrc. |
| Örnek Sipariş | KK 120x78x9,8 FORM A |
| Sipariş Kodu | 120.DK10.078.10.A |
| DMC KODU | VW/AUDI | d1 | L1 | d2 | d3 | d4 | L2 | L3 | A | Form |
| 100.DK10.058.5.5A | 100 | 80 | 76 | 58 | 40,5 | 40 | 55 | 5,5 | A | |
| 120.DK10.078.5.5A | 120 | 90 | 96 | 78 | 50,5 | 50 | 65 | 5,5 | A | |
| 100.DK10.058.5.5B | 100 | 80 | 76 | 58 | 40,5 | 40 | 55 | 5,5 | B | |
| 120.DK10.078.5.5B | 120 | 90 | 96 | 78 | 50,5 | 50 | 65 | 5,5 | B | |
| 100.DK10.058.5.5C | 100 | 80 | 76 | 58 | 40,5 | 40 | 55 | 5,5 | C | |
| 120.DK10.078.5.5C | 120 | 90 | 96 | 78 | 50,5 | 50 | 65 | 5,5 | C | |
| 100.DK10.058.10A | 39V1168/10 | 100 | 80 | 76 | 58 | 40,5 | 40 | 55 | 9,8 | A |
| 120.DK10.078.10A | 39V1168/12 | 120 | 90 | 96 | 78 | 50,5 | 50 | 65 | 9,8 | A |
| 100.DK10.058.10B | 39V1168/14 | 100 | 80 | 76 | 58 | 40,5 | 40 | 55 | 9,8 | B |
| 120.DK10.078.10B | 39V1168/16 | 120 | 90 | 96 | 78 | 50,5 | 50 | 65 | 9,8 | B |
| 100.DK10.058.10C | 39V1168/18 | 100 | 80 | 76 | 58 | 40,5 | 40 | 55 | 9,8 | C |
| 120.DK10.078.10C | 39V1168/20 | 120 | 90 | 96 | 78 | 50,5 | 50 | 65 | 9,8 | C |
